该系列设备用于钢结构件和铸件的表面清理及强化,更适用于厚钢胚的表面除锈及表面氧化皮的清理,广泛应用于铸造、锻压、机械钢铁行业。

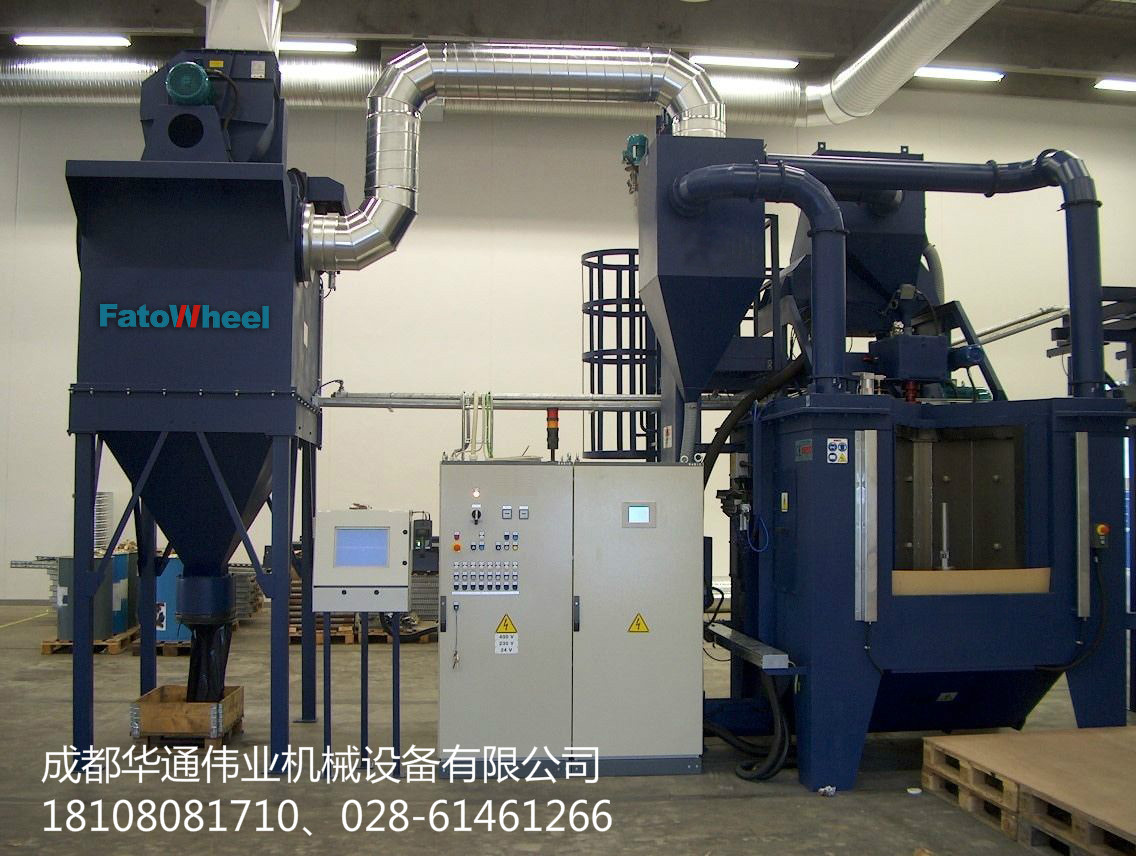

This machine mainly used in cleaning and strengthening the surface of the castings,and used in removing oxide and welding dregs,it is widely suited for the field of oil casting.forging,machinery,iron and steel industry
技术参数 Technical parameters
Q35系列台车式抛丸清理机 Q36系列台车式抛丸清理机 Q76系列抛喷丸台车式清理机
项目 单位 Q3512 Q3525 Q365C Q3610 Q3620 Q7610 Q7620 Q7630 Q765C
清理工件尺寸 mm 600×250×250 1000×500×250 2500×1300 2500×1500×280 4000×3000×700 2500×1500×280 4000×3000×700 4000×2000 2000×1000
工件最大重量 kg 400 1000 5000 10000 20000 10000 20000 30000 5000
抛丸量 kg/min 200 2×250 2×250 4×250 4×250 3×250 4×250 4×250 2×250
提升机提升量 t/h 15 30 40 60 75 45 60 60 30
分离器分离量 t/h 350 150 40 60 75 45 60 60 30
通风量 m³/h 2400 6200 13200 24000 21000 15000 21500 21500 11000
功率(不含除尘) kw 17.3 35.2 39.2 188.45 185.25 184.45 183.35 83.2 35.8
外形尺寸 mm 1500×3450×3780 2200×3500×4300 9000×4200×9290 14900×500×8700 16900×6540×10020 14900×5200×6100 16900×6540×10028 9168×7680×10874 9000×5200×9290
|
